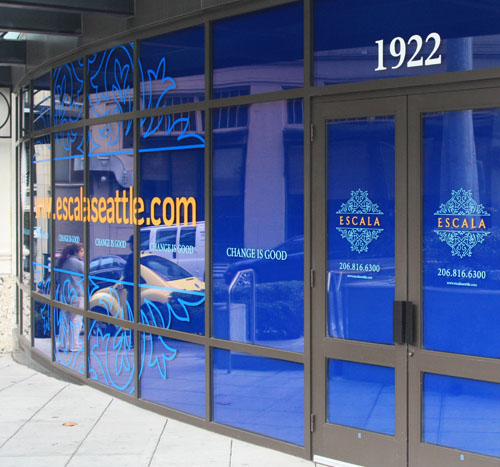

T700 Series | 2” x 4-1/2” Thermally-Broken Center Set Storefront

The D8 Aluminum T700 Series Storefront is a screw spline center set thermally-broken storefront system that delivers high-energy efficiency and is a cost-effective glazing solution for commercial construction. This Series can accommodate all standard D8 entrances and vents.

The T700 Series Thermally-Broken Center Set Storefront system comes with an industry standard factory warranty.



1/4” to 1” glazing options Adaptable glazing options to accommodate design specifications and thermal performance requirements
Inside or outside glaze Cost savings on installation and window replacement
Thermally broken Enhanced energy savings and performance
Integrated sunshade option Attaches to system, not structure and enhances energy savings and performance
Cover cap extension options Exterior enclosure design flexibility
Vertical stack mullion Stackable bays for efficient installation
Custom painted and anodized finishes Wide variety of finishes to accommodate design specifications and customer needs

Performance Data

Air @ 6.24 PSF  |  Per ASTM E-283 <0.06 cfm/SF
Water  |  Per ASTM E-331 10 psf
U-Value  |  Per NFRC-100 0.37 - 0.46
