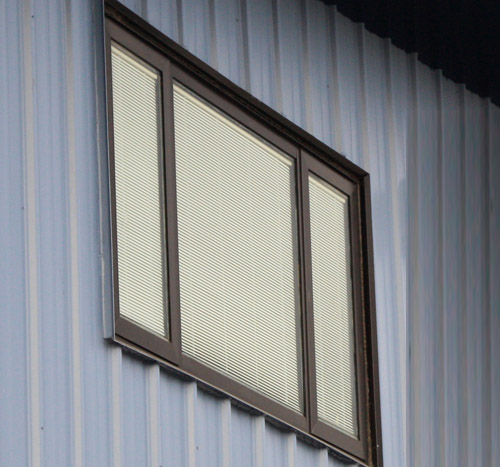

500 Series | 1" Operable Vent Insert

The D8 Aluminum 500 Series is a projected 1” glazed-in vent system. The vent can be installed into any framing system that is designed to accommodate 1” IGU. This window is a cost-effective option for introducing ventilation into fixed framing.

The 500 Series Operable Vent Insert offers a sleek look that meets commercial construction requirements and comes with an industry standard factory warranty.



1” depth Allows glazing in place of 1” IGU (insulated glass unit) that has been removed
Accepts 3/4” glass Glass is still an IGU to aide in thermal retention
Custom painted and anodized finishes Wide variety of finishes to accommodate design specifications and customer needs

Performance Data

Type Awning Casement
Air @ 6.24 PSF  |  Per ASTM E-283 <0.05 cfm/SF <0.05 cfm/SF
Water  |  Per ASTM E-331 8 psf 8 psf
