TI8590 Series | 2-1/2” Thermally-Improved Curtain Wall (available in 5”, 6”, 7-3/8”, 9” and 10-1/2”)

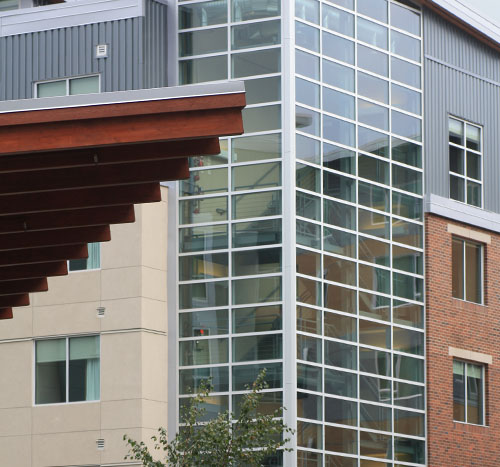

The D8 Aluminum TI8590 Series is a high-performance pressure plate curtain wall system that delivers low U-values while maintaining the superior structural properties associated with curtain wall. This system meets large and small missile imD8t requirements as well as DOD and GSA blast criteria.

The TI8590 Series Thermally-Broken Curtain Wall offers a sleek look that meets commercial construction requirements and comes with an industry standard factory warranty.



Blast rated Engineered to meet DOD/GSA blast criteria
Hurricane rated Coastal applications that meet ASTM 1886/ASTM 1996
Variety of depths Accommodates span and design requirements
Cover cap extension options Exterior enclosure design flexibility
Integral sunshade options Interior climate control
Structural silicone glazing (SSG) and standard captured weather seal configurations Design flexibility
Custom painted and anodized finishes Wide variety of finishes to accommodate design specifications and customer needs

Performance Data

Air @ 6.24 PSF  |  Per ASTM E-283 <0.010 cfm/SF
Water  |  Per ASTM E-331 15 psf
U-Value  |  Per NFRC-100 0.38 - 0.53
